Stabing Guide

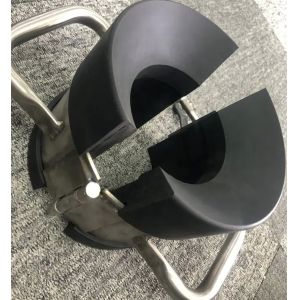

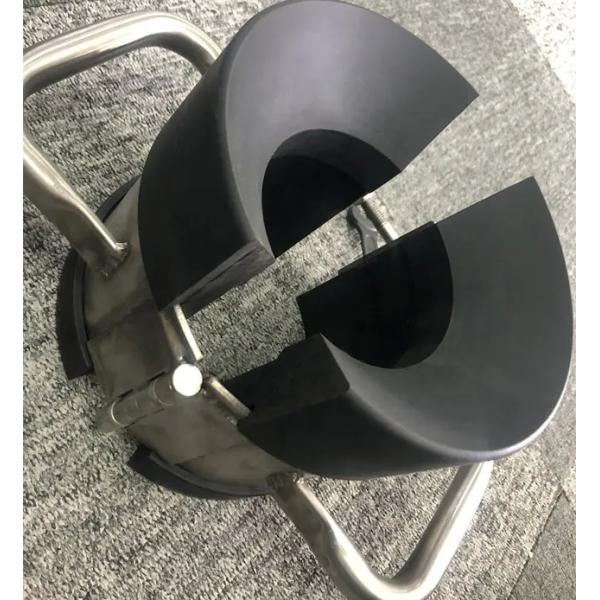

Description of Stabbing Guide:

Stabbing guides play a crucial role in preventing damage during the make-up process of connecting pipe sections. They are manufactured using high-grade steel and durable urethane material, which adds to their robustness. The guides are molded into a profile that acts as a funnel guide, ensuring smooth alignment of pipes.

These stabbing guides are available in different models suitable for tubing, casing, and drill pipe. Furthermore, you can choose from various configurations such as heavy-duty, standard-duty, or mag-latch based on your specific needs.

The primary purpose of stabbing guides is to align pin-to-box threads, minimizing the risk of face damage and connection failure. A stabbing guide tool is utilized for this purpose. It consists of a diametrally split, hinged, and rigid plastics-material infundibulum with high lubricity, toughness, and strength. This design allows the tool to receive and guide a pin connector while having a locating socket that engages a box connector.

To ensure ease of use, the tool is equipped with a torsion spring that keeps it in a closed position and features a pair of hand grip levers for convenient opening, placement, and removal of the tool. The combination of these features enhances the efficiency and safety of the make-up process.

Main Features of Stabbing Guide

-Size Range: 3/4" through 20"

-Large gripping surfaces

-Quick lock and release

-Composite material

-Replacement components
