Composite Material Spiral Type Casing Centralizer 13 5/8

Ask Lasest Price
Brand Name :	ZS
Model Number :	ZS
Certification :	API
Price :	US$160
Payment Terms :	T/T
Supply Ability :	5000
Delivery Time :	15says

Add to Cart

Product Details
Company Profile

Composite Material Spiral Type Casing Centralizer 13 5/8

Solid Rigid Centralizers

Solid rigid centralizers is built using cast aluminum or steel materials. Because the diameter is smaller than the wellbore, so the solid rigid centralizers are not as effective as bow spring centralizers in vertical wells. But they are rugged and works well in the deviated wellbores.

Solid rigid centralizers are available with straight or spiral vanes & rollers. And the length can be regular or short lengths.

4-1/2" to 20" standard sizes and customized service help you find the best solid rigid centralizers for oil and gas cementing projects.

Technology

Size (in.)	Inside Diameter (mm)	Height (mm)	Total Height (mm)	Max. Outside Diameter (mm)
5" × 6-1/2"	128–131	110	650	175
5" × 6-1/4"	130–132	110	650	170
5" × 12-1/4"	128–131	105	690	330
5" × 20"	128–131	105	720	535
5-1/2" × 7"	142–148	55	650	215
5-1/2" × 8-1/2"	142–148	55	650	225
5-1/2" × 8-1/2"	142–148	110	650	225
6" × 8-1/2"	156–158	55	650	235
7" × 8-1/2"	181–186	55	650	235
7" × 8-1/2"	181–186	110	650	235
7" × 9-5/8"	181–186	55	650	255
7" × 9-5/8"	181–186	110	650	255
7-5/8" × 9-1/2"	196–200	110	650	250
7-5/8" × 9-5/8"	197–201	55	650	275
7-5/8" × 12-1/4"	197–201	55	650	275
8-5/8" × 12-1/4"	223–228	55	650	330
9-5/8" × 12-1/4"	250–255	55	650	330
9-5/8" × 12-1/4"	250–255	110	650	330
10-3/4" ×12-1/4"	274–276	55	650	330
10-3/4" ×12-1/4"	274–276	110	650	330
13-3/8" × 17-1/2"	342–347	55	650	450
13-3/8" × 17-1/2"	342–347	110	650	450
18-5/8" × 24"	476	55	600	610
20" × 26"	510	55	600	660

Detailed Images

Packaging & Shipping

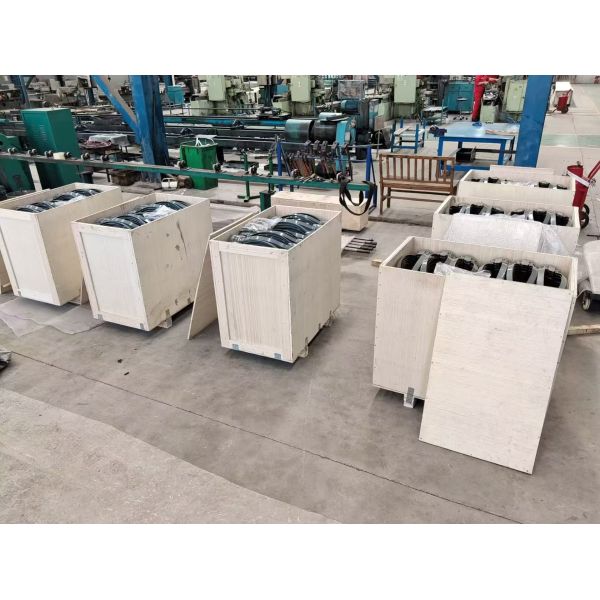

_20250709203213

one bow spring centralizers/spring centralizer/hinged type singal bow spring centralizers 7

Packaging & Shipping

Rigid Roller centralizer used in deep water Horizon Well packing: wooden case

one bow spring centralizers/spring centralizer/hinged type singal bow spring centralizers 8

Company Information

Puyang Zhongshi Group Company Ltd was founded in 1996,which is the restructured enterprise of Central Plains oilfield branch company of SINOPEC . The company registered capital is 6083 million yuan,with annual output value 200 million yuan, 580 employees, including more than 160 technical and administrative staff. Oil machinery is our main products, the leading products include pumping unit,subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels,drilling solid control series products and cementing accessories, We had attained ISO 9001 in 1998 and API Certificates in 2002 .

We have 9 factories, more than 500 employees, and many kinds of production equipments.
We have certificates of API 5CT,6A,10D,11AX,11E, ISO 14001 and 9001.
With 10 years exporting experience,we have exported to more than 30 countries such as America,Canada,Russia,Venezuela,Columbia,Thailand,Indonesia ,UAE,Saudi Arabia,Kazakhstan etc.
